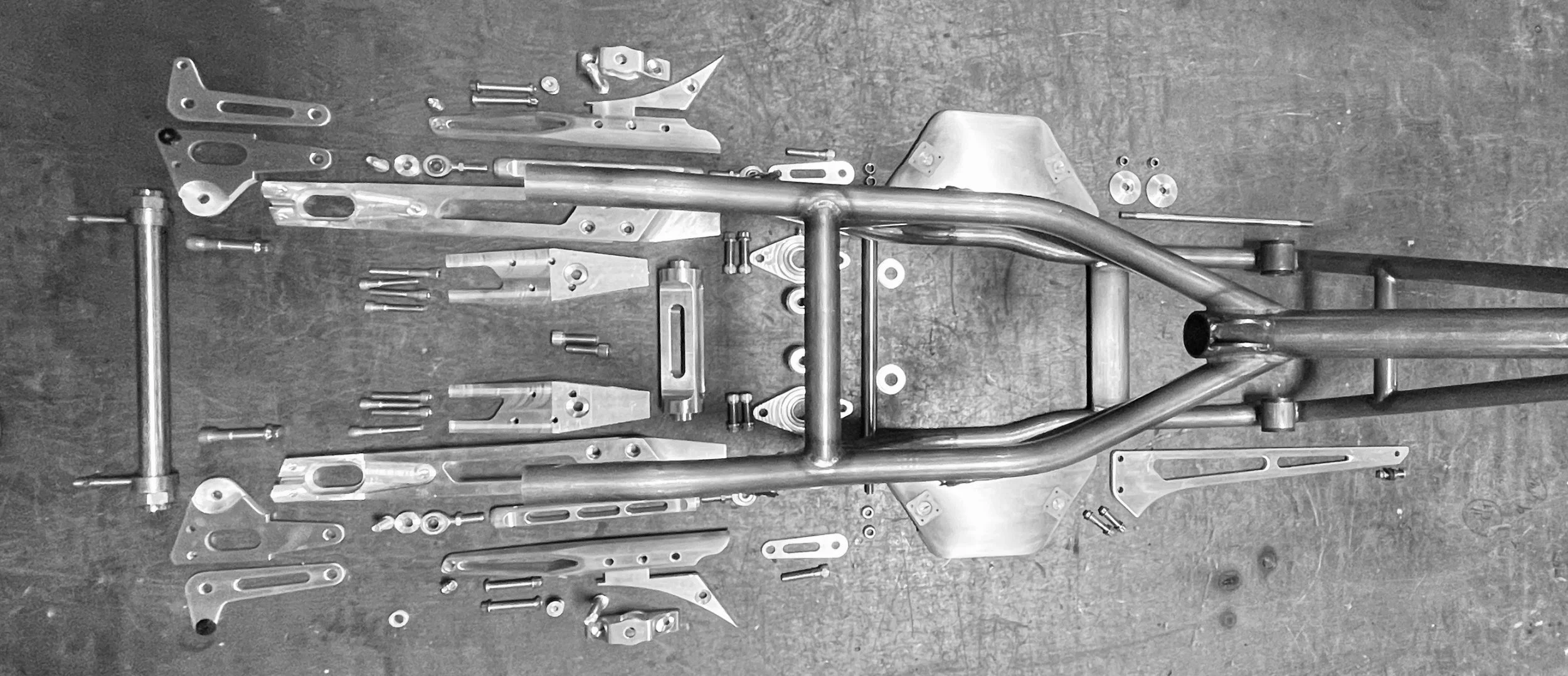

hf-xr

a refined machine handcrafted to your personal specs





Standard

  • Billet strong arm assembly

  • 4130 chromoly|Tig Welded frame

  • Double shear pivot blocks

  • Braced billet frame extensions

  • Motor mount/Cross shafts

  • Speedcell battery with billet mounting bracket

  • Stainless chassis hardware

  • Aluminum side covers

  • Billet neck gusset



Optional

  • Up|Out

  • Any drivetrain

  • Downtube stylization

  • Polished|Anodized components

  • Stainless frame material

  • Sheetmetal mounting or complete fabrication




Heman Strong arm

  • CNC machined from 2024 aluminum

  • 4130 1” hollow axle with stainless nuts

  • Hidden slide in adjusters

  • Outside torque bars

  • Double shear shock mount

  • 1.5” backstretch (same as touring)

  • PTFE lined super swivel rod ends allow for minor length adjustment

  • Assembled with stainless hardware

  • Brake mounts added at customer request




Strong arm pivot blocks

  • Pivot blocks mount in double shear to 4130 HFXR frame for rotation or rear drivetrain to reduce vibration with front bushings, while canceling out side to side movement.

  • Works with strong arm for ultimate chassis response.

  • 6061 bearing carriers|reducer bushings

  • Greasable swivel joints.

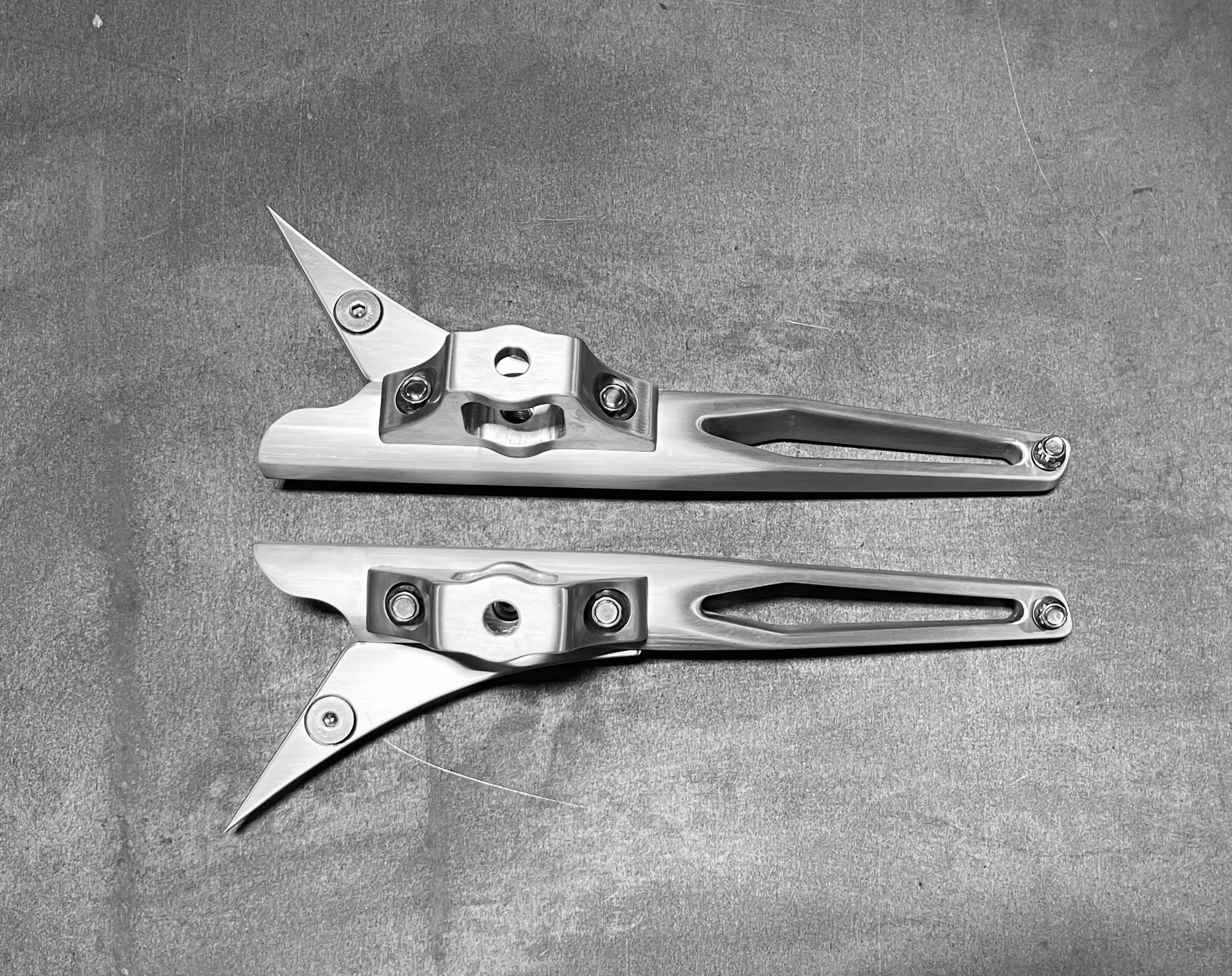

Hf-xr frame extensions

  • Machined from T6 aluminum

  • Slide in gusset captures shock mount & creates three points of contact

  • Double shear outer shock mount

  • Stainless assembly hardware

HF-xr side covers

  • Hand formed from aluminum

  • features Dzus fasteners

Battery & Chassis Mount

  • Speedcell 10 AH Dakar battery

  • Cranking amps - 480

  • Billet chassis mount

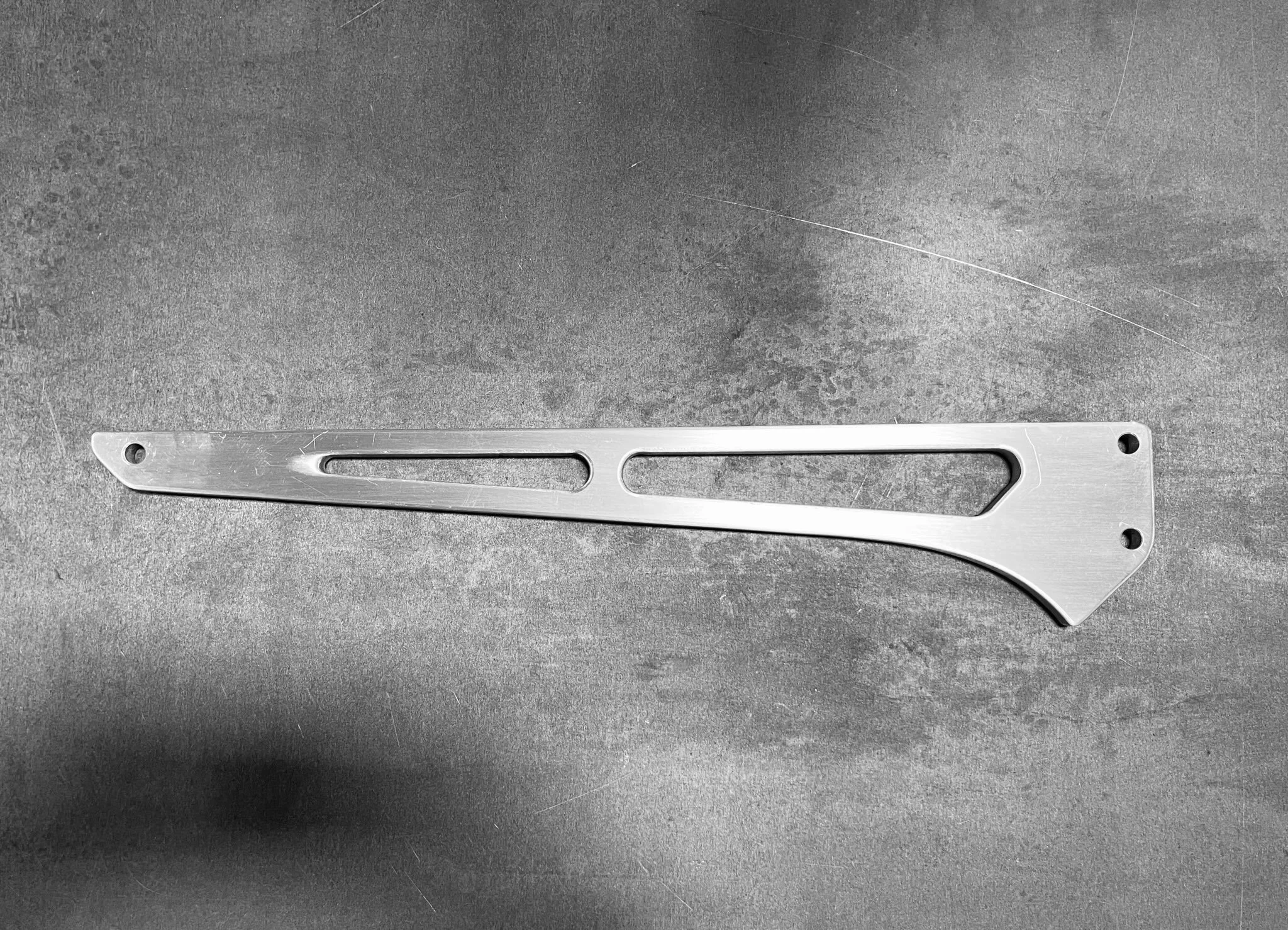

Hf-xr neck gusset

  • Custom made to frame specs

  • Cut from 6061 aluminum

  • Double shear mounted from front & rear

  • Stainless mounting hardware
